4K / 12MP 3.5x Zoom NDAA Network Camera Module


> 1/2.3 "Sony Exmor CMOS Sensor.
> Krêftige 3,5x optyske zoom (3,85 ~ 13,4 mm).
> Max.12MP (4000x3000) resolúsje
> Support Electronic Defog
> Dual video stream útfier, stipe Netwurk.
> Stypje ferskate OSD
> Mei NOVATEK hege prestaasjes chip.


Spesifikaasje

Diminsje

Model

SG-ZCM8003NK

Sensor

Image Sensor 1/2.3 "Sony Starvis progressive scan CMOS
Effektive piksels Ca.12,93 Megapixel

Lins

Focal Length 3,85 mm ~ 13,4 mm, 3,5x optyske zoom
Aperture F2.4~F5.03
Gesichtsfjild H: 82°~25°
Close Focus Ofstân 1m~2m (Wide~Tele)
Zoom snelheid Ca.2.5s (Optical Wide~Tele)
DORI Ofstân (Minsk) Detect Observearje Herkenne Identifisearje
346m 137m 69m 34m

Video

Kompresje H.265/H.264/H.264H/MJPEG
Streaming kapasiteit 3 streams
Resolúsje 50Hz: 10fps@12MP(4000×3000), 25fps@8MP(3840×2160)60Hz:10fps@12MP(4000×3000), 30fps@8MP(3840×2160)
Video Bit Rate 32kbps~16Mbps
Audio AAC / MP2L2

Netwurk

Opslach TF-kaart (256 GB), FTP, NAS
Netwurkprotokol Onvif, HTTP, HTTPS, IPv4, IPv6, RTSP, DDNS, RTP, TCP, UDP
Multicast Stypje
Algemiene Eveneminten Motion, Tamper, SD-kaart, netwurk
IVS Tripwire, Cross Fence Detection, Intrusion, Abandoned Object, Fast-Moving, Parking Detection, Crowd Gathering Estimation, Missing Object, Loitering Detection.
S/N Ferhâlding ≥55dB (AGC út, gewicht ON)
Minimum ferljochting Kleur: 0.5Lux/F2.4;
Lawaai reduksje 2D/3D
Exposure Mode Auto, Aperture Priority, Shutter Priority, Gain Priority, Manual
Exposure Compensation Stypje
Shutter Speed 1/3~1/30000s
BLC Stypje
HLC Stypje
WDR Stypje
Wite Balâns Auto, Hânlieding, Binnen, Outdoor, ATW, Natriumlampe, Strjittelampe, Natuerlik, One Push
Dag/Nacht Elektrysk, ICR (Auto / Hânlieding)
Focus Mode Auto, Manual, Semi Auto, Fast Auto, Fast Semi Auto, One Push AF
Elektroanyske Defog Stypje
Flip Stypje
EIS Stypje
Digitale zoom 16x
Eksterne kontrôle TTL
Ynterface 4pin Ethernet-poarte, 6pin Power & UART-poarte, 5pin Audio-poarte.
Kommunikaasje Protokol SONY VISCA, Pleco D/P
Operating Betingsten (-10°C~+60°C/20% oant 80%RH)
Storage Betingsten (-20°C~+70°C/20% oant 95%RH)
Streamtafier DC 12V
Enerzjyferbrûk Statyske macht: 3,5W, Sports macht: 4,5W
Ofmjittings (L*W*H) 55mm * 30mm * 40mm
Gewicht 55g

  • Foarige:
  • Folgjende:

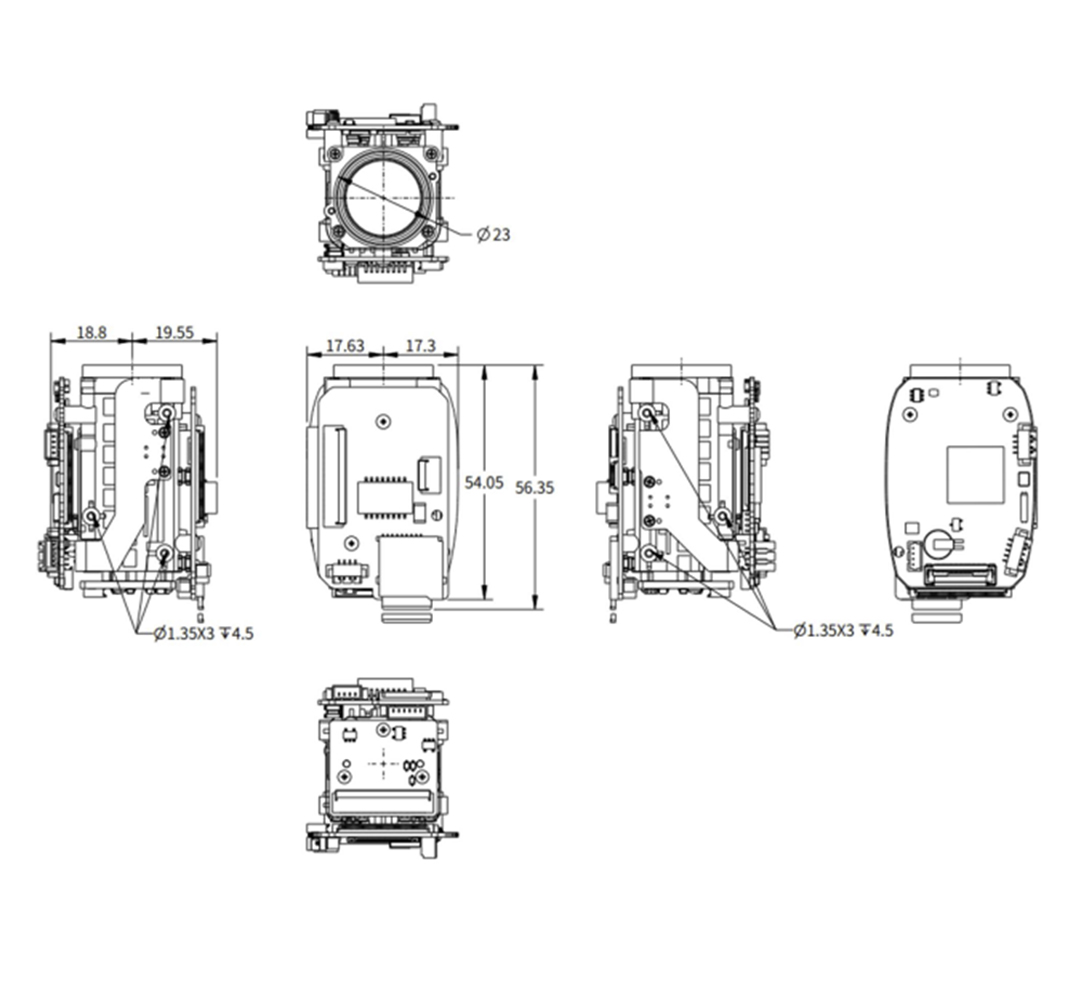

  • D-SG-ZCM8003NK
