1280x1024 thermysk + 2MP 90x optyske zoom bi - spektrum swiere lading Hege presys netwurk PTZ-kamera
|
Model |
SG - Ptz2090Nio-12T30120 |
SG - Ptz2090Nio- 6T30120 |
||||
|
Thermal |
||||||
|
Sensor |
Image sensor |
Uncooolle VOX MicroBolometer |
Uncooolle VOX MicroBolometer |
|||
|
Resolúsje |
1280 × 1024 |
640 × 512 |
||||
|
Pixel Grutte |
12μm |
12μm |
||||
|
Spektraal berik |
8 ~ 14μm |
8 ~ 14μm |
||||
|
Net |
≤ ±Mk @ 25 ° C, F # 1.0 |
≤40mk @ 25 ° C, F # 1.0 |
||||
|
Lins |
Fokale lingte |
30 ~ 120mm motorisearre lens |
30 ~ 120mm motorisearre lens |
|||
|
Optyske zoom |
4x |
4x |
||||
|
Digitale zoom |
4x |
8x |
||||
|
Aperture |
F1.0 ~ F1.4 |
F1.0 ~ F1.4 |
||||
|
FOV |
28.72 ° × 23.15 ° ~ 7.32 ° × 5,86 ° |
14.59 ° × 11,69 ° ~ 3.67 ° × 2.93 ° |
||||
|
Fideo |
Kompresje |
H.265 / H.264 / H.264B / H.264H / MJPEG |
||||
|
Snapshot |
Jpeg |
|||||
|
Pseudo kleur |
Stipe: Wite hyt, swart hot, izeren read, reinbôge 1, fulgurite, reinbôge 2, fúzje, blau, bloed, amber, amber, arctic, tint |
|||||
|
Streams |
Haadstream: 25 / 30FPS @ 1280 × 1024, 25FPS @ 704 × 576, 30 FPS's @ 704 × 480 Sub - Stream: 25fps @ 704 × 576, 30FPS @ 704 × 480, 25fps @ 352 × 288, 25fps @ 352 × 240 |
|||||
|
Netwurk |
Netwurkprotokol |
IPv4, ipv6, http, HTTPS, TCP, UDP, RTP, RTP, ARP, NTP, NTP, PPPOE, PPPOP, PPPOP, IGMM, SNMP, SMTP, QTP, Bonjour |
||||
|
Ynteroperabiliteit |
Onvif, HTTP API, SDK, GB28181 |
|||||
|
Maks. Ferbining |
20 |
|||||
|
Yntelliginsje |
Algemiene Eveneminten |
Motion, Tamper, SD-kaart, netwurk |
||||
|
IVS-funksjes |
Tripwire, krús fan 'e útdûksel, ynbraak, ferlitten objekt, rap - ferpleatse, parkeardeteksje, skattingsmerken, ûntbrekkende objekt, loiteringdeteksje. |
|||||
|
Fjoer deteksje |
Stypje |
|||||
|
Opslachkapäbiliteiten |
Micro SD / SDHC / SDXC-kaart (oant 1tb) Edge Storage, FTP, NAS |
|||||
|
Visible |
||||||
|
Sensor |
Image sensor |
1/50 "Sony Starvis 2 Progressive Scan Cmos |
||||
|
Effektive piksels |
Sawat 8,40 Megapixel |
|||||
|
Lins |
Fokale lingte |
6mm ~ 540mm, 90x optyske zoom |
||||
|
Aperture |
F1.4 ~ F4.87 |
|||||
|
Sichtfjild |
H: 65.24 ° ~ 0.81 °, V: 39.60 ° ~ 0.46 °, d: 72.58 ° ~ 0.94 ° |
|||||
|
Slút fokusôfstân |
1m ~ 10m (Wide ~ TELE) |
|||||
|
Zoom snelheid |
<10s (WIDE ~ TELE) |
|||||
|
Dori-ôfstân (Minske) |
Oantoane |
Waarnimme |
Weromkenne |
Identifisearje |
||
|
10.800m |
4.286m |
2.160m |
1.080m |
|||
|
Fideo |
Kompresje |
H.265 / H.264B / H.264M / H.264H / MJPEG |
||||
|
Streaming Kapasiteit |
3 Streams |
|||||
|
Resolúsje |
Haadstream: 50 / 60FPS @ 1920 × 1080; 50 / 60FPS @ 1280 × 720 Sub - Stream1: 50 / 60FPS @ 704 × 576; 50 / 60FPS @ 640 × 480 Sub - Stream2: 25 / 30FPS @ 1920 × 1080; 25/0 FPS @ 1280 × 720 |
|||||
|
Fideo bitrate |
32 kbps ~ 16Mbps |
|||||
|
Audio |
AAC / MP2L2 |
|||||
|
Netwurk |
Netwurkprotokol |
IPv4, ipv6, http, HTTPS, TCP, UDP, RTP, RTP, ARP, NTP, NTP, PPPOE, PPPOP, PPPOP, IGMM, SNMP, SMTP, QTP, Bonjour |
||||
|
API |
Onvif, HTTP API, SDK |
|||||
|
Webbrowser |
Ie, râne, Firefox, Chrome |
|||||
|
Brûker |
Oant 20 brûkers, 2 nivo: Behearder, brûker |
|||||
|
Opslach |
Micro SD / SDHC / SDXC-kaart (oant 1tb) Edge Storage, FTP, NAS |
|||||
|
Multicast |
Stypje |
|||||
|
Algemiene Eveneminten |
Motion, Tamper, SD-kaart, netwurk |
|||||
|
IVS |
Tripwire, krús fan 'e útdûksel, ynbraak, ferlitten objekt, rap - ferpleatse, parkeardeteksje, skattingsmerken, ûntbrekkende objekt, loiteringdeteksje. |
|||||
|
Doel ûnderskie |
Minske / auto |
|||||
|
S / N RATIO |
У55db |
|||||
|
Minimale ferljochting |
Kleur: 0.001lux / F1.4; B / w: 0.0001lux / F1.4 |
|||||
|
Reduksje foar lûd |
2D / 3D / Ai Noise Reduksje |
|||||
|
Beljochtingsmodus |
Auto, aperture prioriteit, Shutter Priority, Krij prioriteit, Hânlieding |
|||||
|
Beljochtingsferifikaasje |
Stypje |
|||||
|
Shutter Speed |
1/1 ~ 1/30000s |
|||||
|
Blc |
Stypje |
|||||
|
HLC |
Stypje |
|||||
|
WDR |
Stypje |
|||||
|
Wytbalâns |
Auto, hânmjittich, indoor, outdoor, ATW, satriumlampe, strjitrampe, natuerlik, ien druk |
|||||
|
Dei / nacht |
Elektroanysk, icr (auto / hânboek) |
|||||
|
Fokusmodus |
Auto, Hânlieding, Semi Auto, Fast Auto, Fast Semi Auto, One Push AF |
|||||
|
Elektroanyske defog |
Stypje |
|||||
|
Optysk defog |
Support, 750NM ~ 1100nm Kanaal is optysk defog |
|||||
|
HEAT HAZE REDUCTION |
Stypje |
|||||
|
Flip |
Stypje |
|||||
|
Eis |
Stypje |
|||||
|
Digitale zoom |
16x |
|||||
|
Pan tilt |
||||||
|
Motor |
Harmonic Motor |
|||||
|
Power On / Off Sels - Kontrolearje |
Ja |
|||||
|
Preset |
255 |
|||||
|
Kommunikaasjemodus |
Rs485 |
|||||
|
Pan / tilt berik |
Pan: 360 ° Rotearje; Tilt: - - 70 ° ~ + 20 ° |
|||||
|
Pan snelheid |
Konfigurearjen, PAN: 0.01 ° ~ 40 ° / s |
|||||
|
Tilt snelheid |
Konfigureare, Tilt: 0,01 ° ~ 20 ° / s |
|||||
|
PRECIGE FAN PRE POSITYING |
± 0,01 ° |
|||||
|
Scan |
Stypje |
|||||
|
Wiper |
Stipe (foar sichtbere kamera) |
|||||
|
Groep |
||||||
|
Power Interface |
Stypje |
|||||
|
Ethernet |
1 × RJ45 (10Base - T / 100base - TX) |
|||||
|
Audio I / O |
1/1 (allinich foar sichtbere kamera) |
|||||
|
Alarm ik / o |
1/1 |
|||||
|
Rs485 |
1 |
|||||
|
Algemien |
||||||
|
Waterdicht |
IP66, TV's 6000V Lightning-beskerming, previnsje fan Surge |
|||||
|
Krêft |
DC 48V Power Input |
|||||
|
Krêft konsumpsje |
80w |
|||||
|
Fochtigens |
0 ~ 90% Non - Kondensearje |
|||||
|
Wurktemperatuer |
- 40 ° C ~ 70 ° C / 20% oant 90% RH |
|||||
|

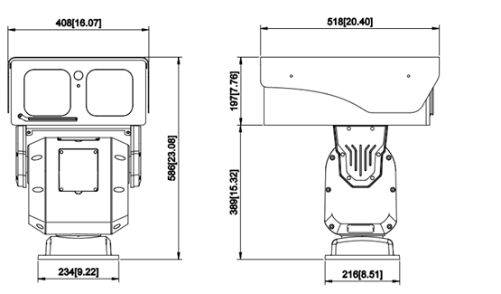

Ofmjittings (L * W * H) |
Sawat 518mm * 408mm * 586mm |
|||||
|
Gewicht |
52kg |
|||||
