1280x1024/640x512 netwurk en digitale dûbele útfier SWIR-kameramodule
Spesifikaasje
Model | SG-SWZ12ND2-17510 | SG-SWZ06ND2-17510 | |
Sensor | Image Sensor | 1/2" SONY InGaAs Global Shutter SWIR Sensor IMX990 | 1/4″ SONY InGaAs Global Shutter SWIR Sensor IMX991 |
| Effektive piksels | Ca. 1.34 MP | Ca. 0.34 MP | |
| Pixel Grutte | 5 μm | ||
Lins | Response golflingte | 1000 ~ 1700 nm | |
| ICR | Stypje 2 modi: Wide band: 1000 ~ 1700nmSmelle band: 1450 ~ 1700nm | ||
| Focal Length | 17mm~510mm, 30x optyske zoom | ||
| Aperture | F2.8~F5.5 | ||
| Field of View | H: 21.3°~0.71°, V: 17.1°~0.57°, D: 27.1°~0.92° | H: 11.6°~0.37°, V: 9.3°~0.3°, D: 14.8°~0.47° | |
| Close Focus Ofstân | 1m~10m (Wide~Tele) | ||
| Zoom snelheid | Ca. 7s (Optical Wide~Tele) | ||
Video | Kompresje | H.265/H.264/H.264H/MJPEG | |
| Resolúsje | 25/30/50/60 fps @ 1280 × 1024 | 25/30/50/60 fps @ 640 × 512 | |
| Video Bit Rate | 32kbps~16Mbps | ||
| Audio | AAC / MP2L2 | ||
| LVDS Fideo | 25/30/50/60 fps @ 2MP (1920 × 1080) | ||
Netwurk | Opslach | TF-kaart (256 GB), FTP, NAS | |
| Netwurkprotokol | Onvif, HTTP, HTTPS, IPv4, IPv6, RTSP, DDNS, RTP, TCP, UDP | ||
| Multicast | Stypje | ||
| Firmware Upgrade (LVDS) | Allinne kin opwurdearje de firmware fia Netwurk haven | ||
| Algemiene Eveneminten | Motion, Tamper, SD Card, Netwurk | ||
| IVS | Tripwire, Cross Fence Detection, Intrusion, Abandoned Object, Fast-Moving, Parking Detection, Crowd Gathering Estimation, Missing Object, Loitering Detection. | ||
| Noise Reduksje | 2D/3D | ||
| Exposure Mode | Hânlieding, Auto, Aperture Prioriteit, Shutter Prioriteit | ||
| Exposure Compensation | Stypje | ||
| Shutter Speed | 1/1~1/30000s | ||
| Focus Mode | Auto / Hânlieding / Semi Auto | ||
| Elektroanyske Defog | Stypje | ||
| Heat Haze Reduction | Stypje | ||
| Flip | Stypje | ||
| EIS | Stypje | ||
| Digitale zoom | 16x | ||
| Eksterne kontrôle | TTL | ||
| Ynterface | 4pin Ethernet haven, 6pin serial & macht haven, 5pin Audio port.30pin LVDS | ||
| Kommunikaasje Protokol | SONY VISCA, Pleco D/P | ||
| Operating Betingsten | -30~+60°C/20%~80%RH | ||
| Storage Betingsten | -40~+70°C/20%~95%RH | ||
| Streamtafier | DC 12V | ||
| Stromferbrûk (TBD) | Gem: 6W; Maksimum: 11W | ||

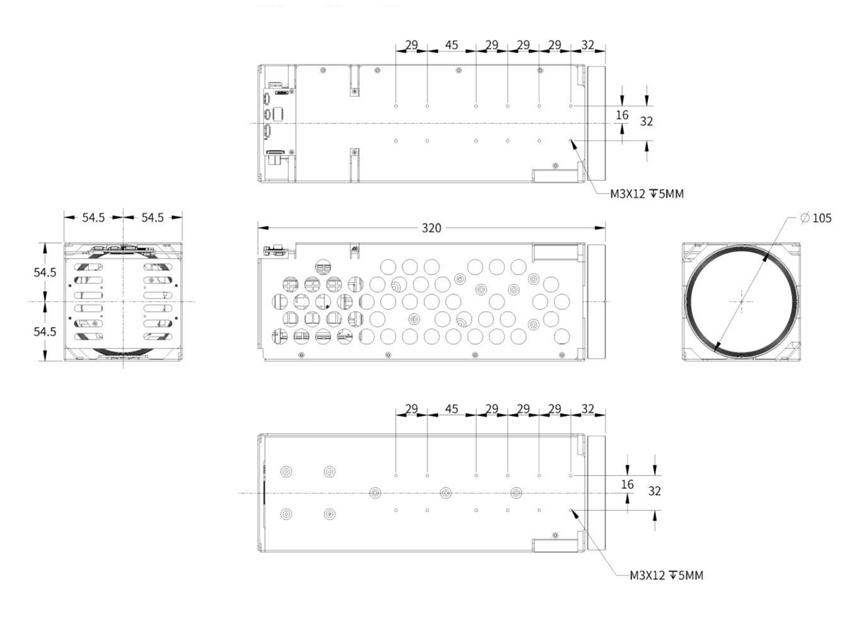

| Ofmjittings (L*W*H) | Ca. 320mm * 109mm * 109mm | ||
| Gewicht | 3,1kg | ||
Netwurk ynterface
| Type | PIN Nûmer | PIN Namme | Beskriuwing |
| J2_4pin Ethernet ynterface | 1 | ETHRX- | Adaptive Ethernet-poarte, Ynternet RX - |
| 2 | ETHRX+ | Adaptive Ethernet haven, Ynternet RX + | |
| 3 | ETHTX- | Adaptive Ethernet-poarte, Ynternet TX - | |
| 4 | ETHTX+ | Adaptive Ethernet haven, Ynternet TX + | |
| J3_6pin Power & UART Interface | 1 | DC_IN | DC12V |
| 2 | GND | GND | |
| 3 | RXD1 | TTL Level 3.3V, Pelco Protokol | |
| 4 | TXD1 | TTL Level 3.3V, Pelco Protokol | |
| 5 | RXD0 | TTL Level 3.3V, Visca Protokol | |
| 6 | TXD0 | TTL Level 3.3V, Visca Protokol | |
| J1_5pin Audio Ynterface | 1 | AUDIO_OUT | Audio Out (Line Out) |
| 2 | GND | GND | |
| 3 | AUDIO_IN | Audio In (Line In) | |
| 4 | GND | GND | |
| 5 | NC | NC |
LVDS Ynterface
| Haven | Nûmer | PIN Namme | Beskriuwing |
| J4_30pin LVDS-ynterface (lykas SONY 30pin digitale ynterface) | 1 | NC | NC |
| 2 | NC | ||
| 3 | NC | ||
| 4 | NC | ||
| 5 | NC | ||
| 6 | NC | ||
| 7 | NC | ||
| 8 | NC | ||
| 9 | GND | GND | |
| 10 | GND | ||
| 11 | GND | ||
| 12 | GND | ||
| 13 | DC | DC-útfier (DC+7V~+12V) | |
| 14 | DC | ||
| 15 | DC | ||
| 16 | DC | ||
| 17 | DC | ||
| 18 | UART1_TX | TTL nivo 3.3V, VISCA protokol, itselde oan TXD0 op J3_6pin Port. Mar kin net tagelyk ferbine. | |
| 19 | UART1_RX | TTL nivo 3.3V, VISCA protokol, itselde oan RXD0 op J3_6pin Port. Mar kin net tagelyk ferbine. | |
| 20 | GND | GND | |
| 21 | TXOUT0- | ||
| 22 | TXOUT0+ | ||
| 23 | TXOUT1- | ||
| 24 | TXOUT1+ | ||
| 25 | TXOUT2- | ||
| 26 | TXOUT2+ | ||
| 27 | TXOUTCLK- | ||
| 28 | TXOUTCLK+ | ||
| 29 | TXOUT3- | ||
| 30 | TXOUT3+ |
