1280x1024 Thermale netwurkkamera-module mei 50 ~ 350mm motorisearre lens
|
Model |
SG-TCM12N2-M50350 |
|
|
Sensor |
Image sensor |
Uncooolle VOX MicroBolometer |
|
Resolúsje |
1280 × 1024 |
|
|
Frame Rate |
50Hz |
|
|
Pixel Pitch |
12μm |
|
|
Spektraal berik |
8 ~ 14μm |
|
|
Net |
≤35mK@25°C, F#1.0 |
|
|
Lins |
Coating |
DLC |
|
Fokale lingte |
50 ~ 350 mm |
|
|
Lens Type |
Motorisearre |
|
|
Optyske zoom |
7x |
|
|
Digitale zoom |
8x |
|
|
F wearde |
F1.0~F1.4 |
|
|
FOV |
17.46°×14.01°~2.51°×2.01° |
|
|
Fideo |
Kompresje |
H.265/H.264/H.264H/H.264B/MJPEG |
|
Audio kompresje |
AAC / MP2L2 |
|
|
Snapshot |
Jpeg |
|
|
Resolúsje |
Haadstream: 50fps@(1280×1024, 1280×720, 704×576, 704×480) |
|
|
Video Bit Rate |
4kbps~40Mbps |
|
|
Netwurk |
Netwurkprotokol |
IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTSP, RTCP, RTP, ARP, NTP, FTP, DHCP, PPPoE, DNS, DDNS, UPnP, IGMP, ICMP, SNMP, SMTP, QoS, 802.1x, Bonjour |
|
API |
ONVIF, HTTP API, SDK, GB28181 |
|
|
Netwurk Feiligens |
Brûkersautentikaasje, IP/MAC-filtering, HTTPS-fersifering, IEEE 802.1X Netwurk tagongskontrôle |
|
|
Webblêder |
IE, Edge, Firefox, Chrome |
|
|
Meidogger |
Oant 20 brûkers, nivo 2: Behearder, Brûker |
|
|
Storage |
Micro SD / SDHC / SDXC card (oant 1TB) edge opslach, FTP, NAS |
|
|
Multicast |
Stypje |
|
|
Yntelliginsje |
Perimeter beskerming |
Tripwire, Cross Fence Detection, Ynbraak |
|
Gedrach Analysis |
Abandoned Object, Object Removal, Fast-Moving, Crowd Detection, Loitering Detection, Parking Detection |
|
|
Eveneminten |
Bewegingsdeteksje, fideo-okklusion, sêneferoaring, audiodeteksje, netwurk loskeppele, IP-konflikt, yllegale tagong, opslachanomaly |
|
|
Fire Detection |
Stypje |
|
|
Groep |
Ethernet |
4pin Ethernet Port, 10m / 100m Sels - ADAPTION |
|
Alarm yn / út |
1/1 |
|
|
Audio yn / út |
1/1 |
|
|
Control Interface |
1x TTL 3.3V (VISCA-protokol), 1x RS485 (Pelco-protokol) (TTL 3.3V opsjoneel) |
|
|
Video Output |
Netwurk |
|
|
Pseudo kleur |
White hot, black hot, fusion, izer read, ensfh 20 opsjes |
|
|
Focus Mode |
Auto / Hânlieding / One Push AF |
|
|
FFC-modus |
Auto / Hânlieding |
|
|
Ofbylding ynstelling |
Helderheid, Kontrast, Skerpte, en Temporele Noise Reduction |
|
|
Eis |
Stypje |
|
|
OSD |
Stypje |
|
|
Flip |
Stypje |
|
|
Mirror |
Stypje |
|
|
Streamtafier |
DC 12V, 1A |
|
|
Typysk Enerzjyferbrûk |
3.8W |
|
|
Pyk enerzjyferbrûk |
7.5W |
|
|
Bestjoeringsbetingsten |
-30°C~+60°C/20% oant 80%RH |
|
|
Opslachbetingsten |
-40°C~+70°C/20% oant 95%RH |
|
|
It 1e Lensbeskermingsnivo |
IP67 |
|
|

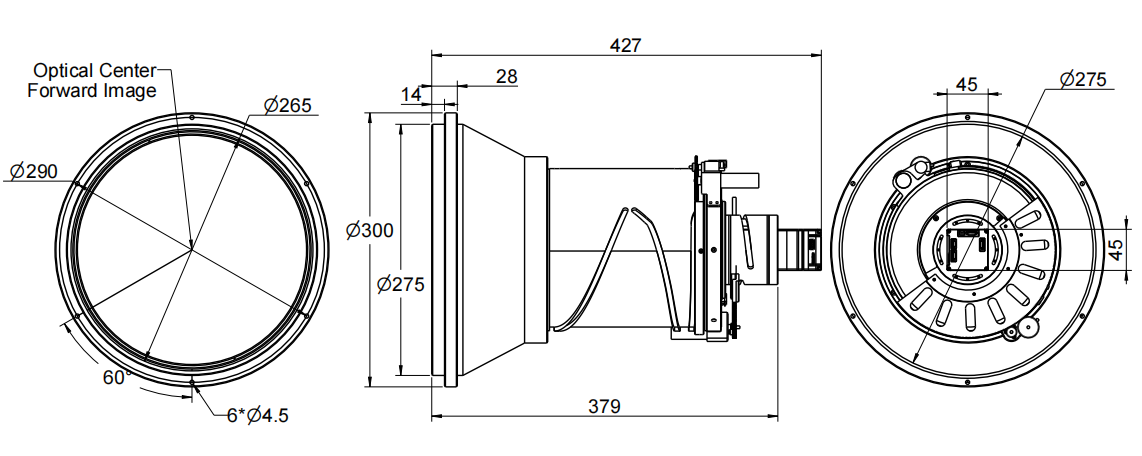

Ofmjittings fan ienheid (L*W*H) |
Φ300 * 427 mm |
|
|
Ofmjittings fan ferpakking (L*W*H) |
640 * 490 * 520 mm |
|
|
Gewicht |
19,2 kg (mei beugel), 13,6 kg (sûnder beugel) |
|
DRI Ofstân
Doel: Minsklike grutte is 1.8m × 0.5m (krityske grutte is 0.75m), Vehikelgrutte is 1.4m × 4.0m (krityske grutte is 2.3m); Fjoergrutte is 0,13m × 0,13m (krityske grutte is 0,13m).
De doeldeteksje, erkenning en identifikaasjeôfstannen wurde berekkene neffens Johnson's Criteria.
De oanrikkemandearre ôfstannen fan deteksje, erkenning en identifikaasje binne as folget:
|
Lins |
Detect |
Herkenne |
Identifisearje |
||||||
|
Vehicle |
Minsk |
Fjoer |
Vehicle |
Minsk |
Fjoer |
Vehicle |
Minsk |
Fjoer |
|
|
50 mm |
6389m (20961 ft) |
2083m (6834 ft) |
361m (1184 ft) |
1597m (5240 ft) |
521m (1709 ft) |
90m (295 ft) |
799m (2621 ft) |
260m (853 ft) |
45m (148ft) |
|
350 mm |
44722m (146726 ft) |
14583m (47844 ft) |
2528m (2894 ft) |
11181m (36683 ft) |
3646m (11962 ft) |
632m (2044 ft) |
5590m (18340 ft) |
1823m (5981 ft) |
361m (1184 ft) |
