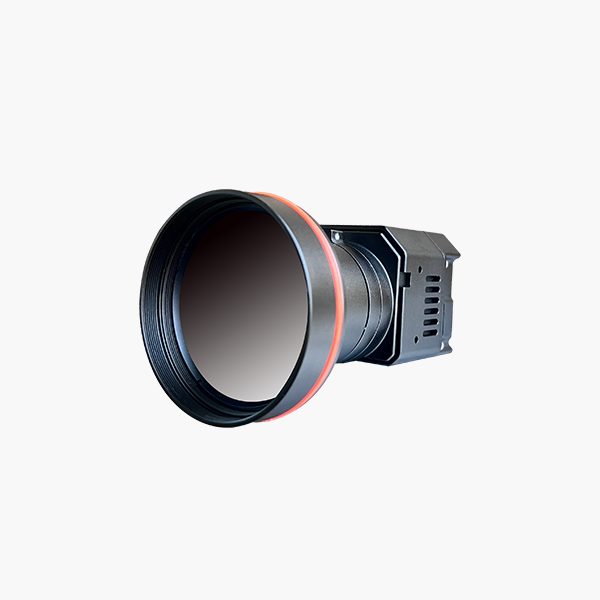

1280x1024 Thermal Network Camera Module mei 55mm (35mm) fêste lens

Model

SG-TCM12N2-55

SG-TCM12N2-35

Sensor

Image Sensor

Unkoelde VOx mikrobolometer

Resolúsje

1280×1024

Frame Rate

50Hz

Pixel Pitch

12 μm

Spektrale berik

8~14μm

NETD

≤35mK@25°C, F#1.0

Lens

Coating

DLC

Focal Length

55 mm

35 mm

Fokus

Hânlieding

Hânlieding

Digitale zoom

8x

8x

F wearde

F1.0

F1.0

FOV

15.90°×12.75°

24.75°×19.91°

Video

Kompresje

H.265/H.264/H.264H/H.264B/MJPEG

Audio kompresje

AAC / MP2L2

Snapshot

JPEG

Resolúsje

Haadstream: 50fps@(1280×1024, 1280×720, 704×576, 704×480)
Sub-Stream1/2: 50fps@(704×576, 704×480, 352×288, 352×240)

Video Bit Rate

4kbps~40Mbps

Netwurk

Netwurkprotokol

IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTSP, RTCP, RTP, ARP, NTP, FTP, DHCP, PPPoE, DNS, DDNS, UPnP, IGMP, ICMP, SNMP, SMTP, QoS, 802.1x, Bonjour

API

ONVIF, HTTP API, SDK, GB28181

Netwurk Feiligens

Brûkersautentikaasje, IP/MAC-filtering, HTTPS-fersifering, IEEE 802.1X Netwurk tagongskontrôle

Webblêder

IE, Edge, Firefox, Chrome

Meidogger

Oant 20 brûkers, nivo 2: Behearder, Brûker

Storage

Micro SD / SDHC / SDXC card (oant 1TB) edge opslach, FTP, NAS

Multicast

Stipe

Yntelliginsje

Perimeter beskerming

Tripwire, Cross Fence Detection, Ynbraak

Gedrach Analysis

Abandoned Object, Object Removal, Fast-Moving, Crowd Detection, Loitering Detection, Parking Detection

Eveneminten

Bewegingsdeteksje, fideo-okklusion, sêneferoaring, audiodeteksje, netwurk loskeppele, IP-konflikt, yllegale tagong, opslachanomaly

Fire Detection

Stipe

Ynterface

Ethernet

4PIN Ethernet-poarte, 10M/100M sels-oanpassing

Alarm yn/út

1/1

Audio yn/út

1/1

Control Interface

1x TTL 3.3V (VISCA-protokol),

1x RS485 (Pelco-protokol) (TTL 3.3V opsjoneel)

Video Output

Netwurk

Pseudo kleur

White hot, black hot, fusion, izer read, ensfh 20 opsjes

FFC-modus

Auto / Hânlieding

Image Setting

Helderheid, Kontrast, Skerpte, en Temporele Noise Reduction

EIS

Stipe

OSD

Stipe

Flip

Stipe

Mirror

Stipe

Power Supply

DC 12V, 1A

Power Consumption

≤3.8W

Operating Betingsten

-30°C~+60°C/20% oant 80%RH

Storage Betingsten

-40°C~+70°C/20% oant 95%RH

It 1e Lensbeskermingsnivo

IP67

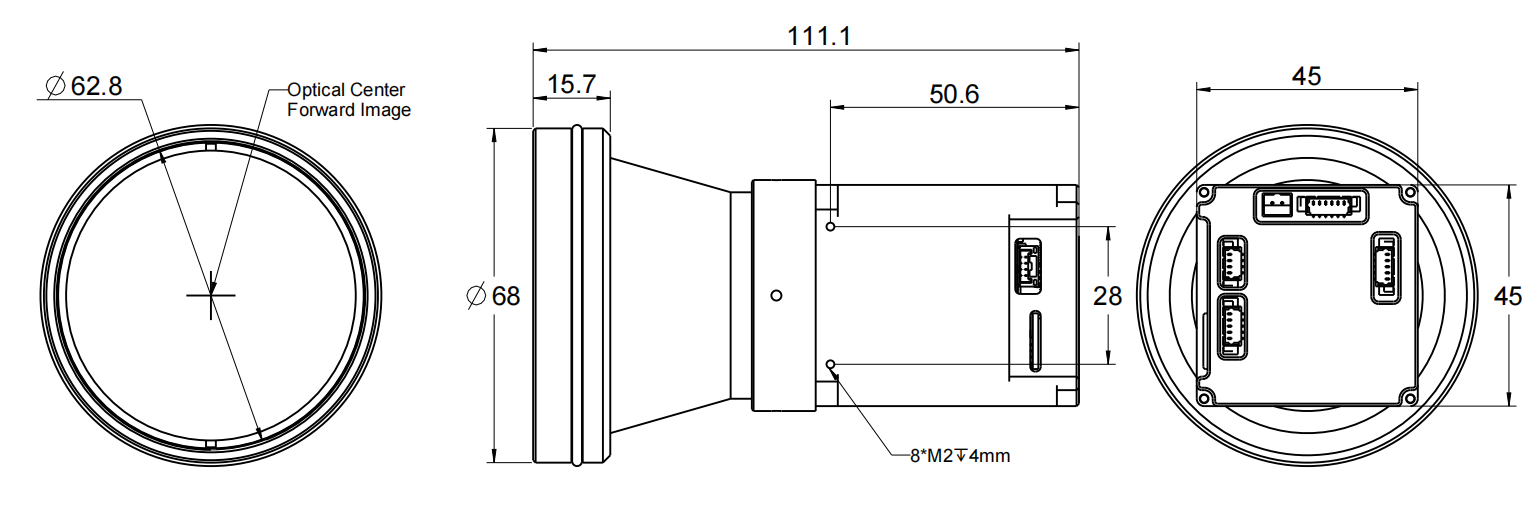

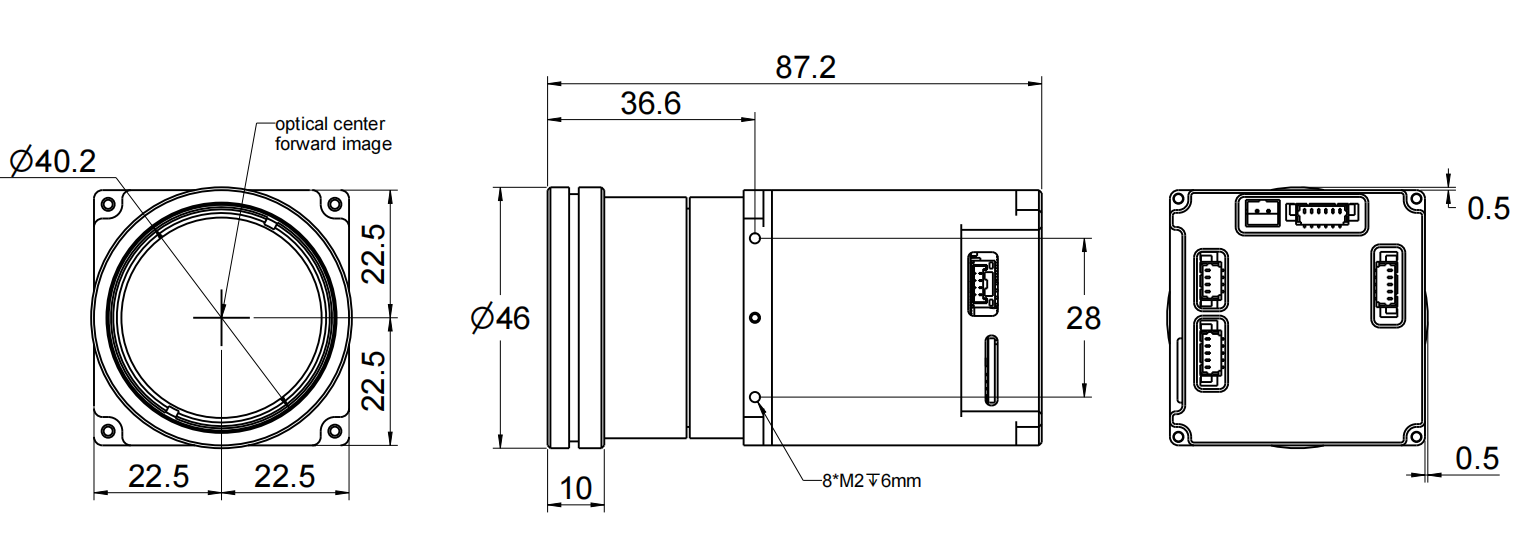

Ofmjittings (L*W*H)

Φ68*111.1mm

87.2*46*46mm

Gewicht

Ca. 430g

Ca. 224g

Lens

Detect

Rwerkenne

Identify

Vehicle

Minsk

Fjoer

Vehicle

Minsk

Fjoer

Vehicle

Minsk

Fjoer

35 mm

4472m (14672ft)

1458m (4783ft)

253m

(830 ft)

1118m (3668ft)

365 m (1198 ft)

63m

(207ft)

559 m (1834 ft)

182 m (597 ft)

32m

(105ft)

55 mm

7028m (23058ft)

2292m (7520ft)

397m

(1302 ft)

1757 m (5764 ft)

573 m (1880 ft)

99m

(325 ft)

878 m (2281 ft)

286 m (938 ft)

50m

(164ft)
