640x512 thermyske netwurkkamera-module mei 30 ~ 180mm motorisearre lens
|
Model |
SG - TCM06N2 - M30180 |
|
|
Sensor |
Image sensor |
Uncooolle VOX MicroBolometer |
|
Resolúsje |
640 × 512 |
|
|
Pixel Grutte |
12μm |
|
|
Spektraal berik |
8 ~ 14μm |
|
|
Net |
≤40mk @ 25 ℃, F # 1.0 |
|
|
Lins |
Fokale lingte |
30 ~ 180mm motorisearre lens |
|
Optyske zoom |
6x |
|
|
Digitale zoom |
8x |
|
|
F wearde |
F1.0 ~ F1.4 |
|
|
FOV |
14.59 ° × 11,69 ° ~ 2.44 ° × 1,96 ° |
|
|
Fideo |
Kompresje |
H.265 / H.264B / H.264M / H.264H / MJPEG |
|
Snapshot |
Jpeg |
|
|
Pseudo kleur |
Stipe: Wite hyt, swart hot, izeren read, reinbôge 1, fulgurite, reinbôge 2, fúzje, blau, bloed, amber, amber, arctic, tint |
|
|
Streams |
Haadstream: 25 / 30FPS @ 1280 × 1024, 25/30 NEX @ 1280 × 720, 25 / 30FPS @ 640 × 512 Sub - Stream: 25 / 30FPS @ 640 × 512, 25 / 30FPS @ 352 × 288 |
|
|
Netwurk |
Netwurkprotokol |
IPv4, ipv6, http, HTTPS, TCP, UDP, RTP, RTP, ARP, NTP, NTP, PPPOE, PPPOP, PPPOP, IGMM, SNMP, SMTP, QTP, Bonjour |
|
Ynteroperabiliteit |
Onvif, HTTP API, SDK, GB28181 |
|
|
Maks. Ferbining |
20 |
|
|
Yntelliginsje |
Algemiene Eveneminten |
Motion, Tamper, SD-kaart, netwurk |
|
IVS-funksjes |
Tripwire, krús fan 'e útdûksel, ynbraak, ferlitten objekt, rap - ferpleatse, parkeardeteksje, skattingsmerken, ûntbrekkende objekt, loiteringdeteksje. |
|
|
Fjoer deteksje |
Stypje |
|
|
Groep |
Ethernet |
4pin Ethernet Port, 10m / 100m Sels - ADAPTION |
|
Analoge-fideo |
1ch CVBS |
|
|
Alarm yn / út |
1/1 |
|
|
Audio yn / út |
1/1 |
|
|
Rs485 |
Stypje |
|
|
Resolúsje |
50hz: 25fps @ (1280 × 1024) |
|
|
Opslachkapäbiliteiten |
Micro SD / SDHC / SDXC-kaart (oant 1tb) Edge Storage, FTP, NAS |
|
|
Streamtafier |
DC 12V, 1A |
|
|
Bestjoeringsbetingsten |
- 30 ° C ~ + 60 ° C / 20% oant 80% RH |
|
|
Opslachbetingsten |
- 40 ° C ~ + 70 ° C / 20% oant 95% RH |
|
|

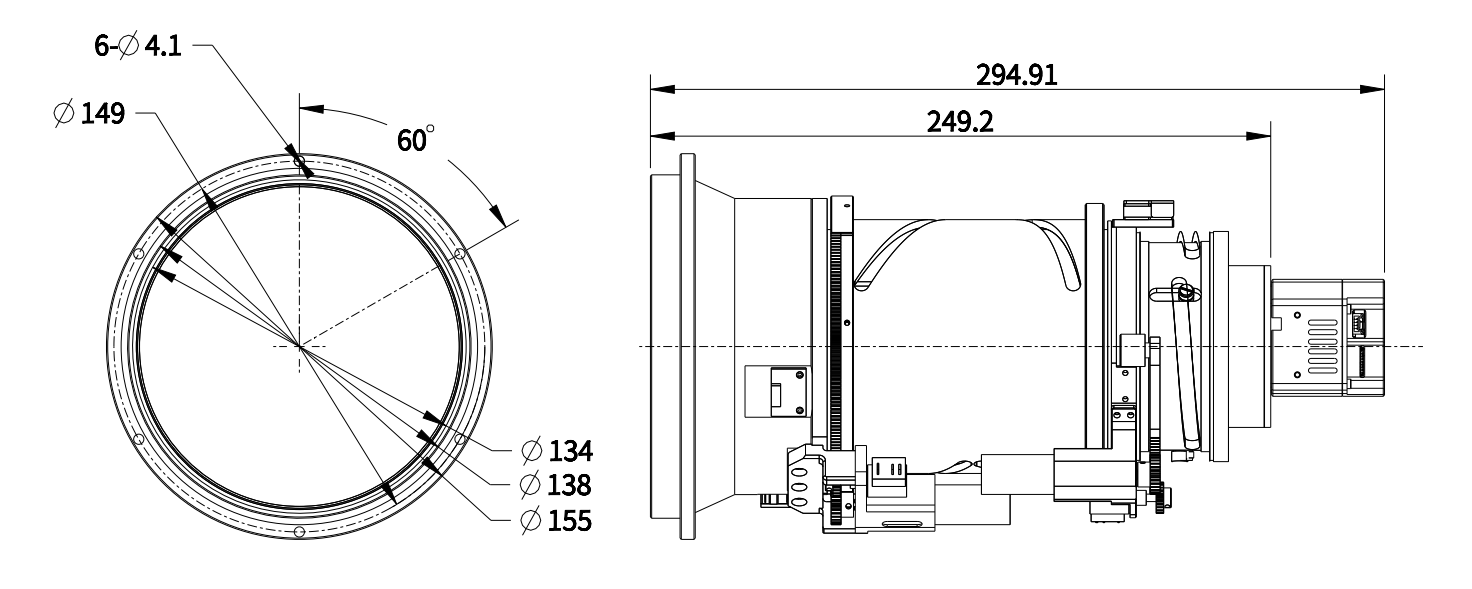

Ofmjittings (L * W * H) |
Sawat 295mm * 155mm * 155mm |
|
|
Gewicht |
Sawat 3,2kg |
|
