12UM 640x512 USB-útfier kompakte grutte thermyske module
|
Modelnûmer |
SG - HTM06U2 - T9 |
SG - HTM06U2 - T15 |
SG - HTM06U2 - T19 |
SG - HTM06U2 - T25 |
|
Thermyske module |
||||
|
Image sensor |
Vox uncolleed fokale planearrays |
|||
|
Maks. Resolúsje |
640 × 512 |
|||
|
Rûings |
Ferstelber, 6Hz oant 30HZ |
|||
|
Pixel Interval |
12μm |
|||
|
Antwurdzje wawwand |
8μm oant 14μm |
|||
|
Net |
≤ 40mk (@ 25 ° C), F # = 1.0 |
|||
|
Lens (fokale lingte) |
9.1mm |
15mm |
19mm |
25mm |
|
F Number |
F1.0 |
F1.0 |
F1.0 |
F1.0 |
|
IFOV |
1.3MRAD |
0.8mrad |
0.6mrad |
0.48mrad |
|
Fjildfjild (H × V) |
48,3 ° × 38,6 ° |
29.3 ° × 23,4 ° |
22,8 ° × 18,4 ° |
17.46 ° × 14.01 ° |
|
Min. Fokusôfstân |
2m |
5m |
7m |
8m |
|
Temperatuermjitting |
||||
|
Temperatuer berik |
- 20 ° C ~ + 150 ° C & 100 ° C ~ 550 ° C |
|||
|
Temperatuerferdigening |
Max (± 2 ° C, ± 2%) by omjouwingstemperatuer 25 ° C en Objekttemperatuer boppe 0 ° C |
|||
|
Temperatuerôfstân (basearre op 0,65 × 0,65m) |
10m (fierste) |
15m (fierste) |
20m (fierste) |
25m (fierste) |
|
Thermografy regel |
3 Temperatuerregelregeltypen, 21 regels (10 punten, 10 regio's, en 1 rigel) |
|||
|
Gegevens útfier |
16bit Temperatur Data |
|||
|
Image display |
||||
|
Kontrast-oanpassing |
Ja |
|||
|
Helderheid oanpassing |
Ja |
|||
|
Palettes |
15 palettes fan kleur ferstelbere, standert wyt hyt |
|||
|
FFC (platte fjildkorreksje) modus |
Auto, Hânlieding, eksterne korreksje |
|||
|
DDe |
Ja |
|||
|
Algemien |
||||
|
Hardware-ynterface |
USB2.0 FPC |
|||
|
Krêft |
DC 5V ± 5% |
|||
|
Krêft konsumpsje |
≤0.55w |
≤0.55w |
≤0.55w |
≤0.65w |
|
Vibration & Shock |
Vibration: sinusoidale trilling, 20 m / s ², 3 - as SHOCK: Half Sine Wave, 30 G / 11 MS, 3 - Axis 6 - Way |
|||
|

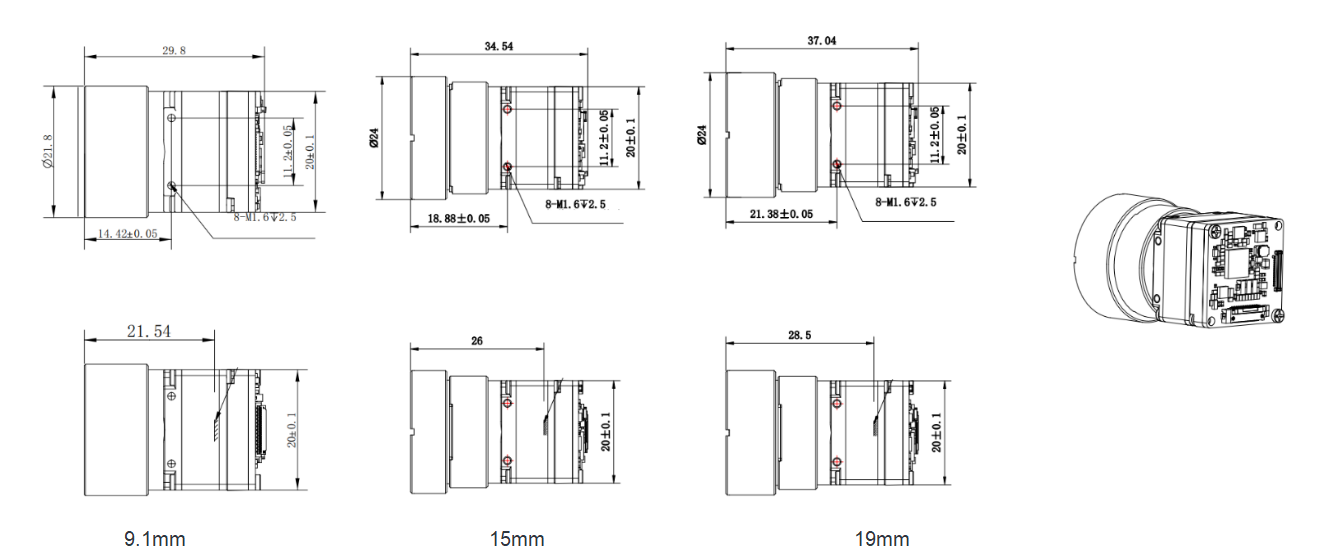

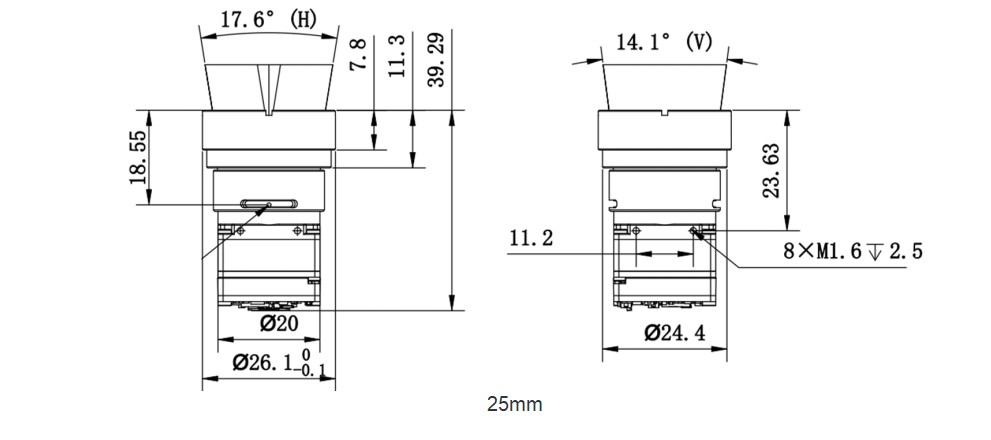

Diminsje (mm) |
29.8 * 20 * 20mm |
34.54 * 20 * 20mm |
37.04 * 20 * 20mm |
39.29 * 20 * 20mm |
|
Gewicht |
≤22g |
≤28g |
≤32g |
≤33g |
|
Wurktemperatuer |
- 40 ° C ~ 70 ° C |
|||
