640x512 Thermal Network Camera Module mei 25mm (19mm, 13mm) fêste lens
|
Model |
SG-TCM06N2-25 |
SG-TCM06N2-19 |
SG-TCM06N2-13 |
|
|
Sensor |
Image Sensor |
Unkoelde VOx mikrobolometer |
||
|
Resolúsje |
640×512 |
|||
|
Frame Rate |
50Hz |
|||
|
Pixel Pitch |
12 μm |
|||
|
Spektrale berik |
8~14μm |
|||
|
NETD |
≤40mK@25°C, F#1.0 |
|||
|
Lens |
Coating |
DLC |
||
|
Focal Length |
25 mm |
19 mm |
13 mm |
|
|
Fokus |
Hânlieding |
Hânlieding |
Hânlieding |
|
|
Digitale zoom |
8x |
8x |
8x |
|
|
F wearde |
F1.0 |
F1.0 |
F1.0 |
|
|
FOV |
17.46°×14.04° |
22.85°×18.37° |
32,91°×26,59° |
|
|
Video |
Kompresje |
H.265/H.264/H.264H/H.264B/MJPEG |
||
|
Audio kompresje |
AAC / MP2L2 |
|||
|
Snapshot |
JPEG |
|||
|
Resolúsje |
Haadstream: 50fps@(1280×1024, 1280×720, 704×576, 704×480) |
|||
|
Video Bit Rate |
4kbps~40Mbps |
|||
|
Netwurk |
Netwurkprotokol |
IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTSP, RTCP, RTP, ARP, NTP, FTP, DHCP, PPPoE, DNS, DDNS, UPnP, IGMP, ICMP, SNMP, SMTP, QoS, 802.1x, Bonjour |
||
|
API |
ONVIF, HTTP API, SDK, GB28181 |
|||
|
Netwurk Feiligens |
Brûkersautentikaasje, IP/MAC-filtering, HTTPS-fersifering, IEEE 802.1X Netwurk tagongskontrôle |
|||
|
Webblêder |
IE, Edge, Firefox, Chrome |
|||
|
Meidogger |
Oant 20 brûkers, nivo 2: Behearder, Brûker |
|||
|
Storage |
Micro SD / SDHC / SDXC card (oant 1TB) edge opslach, FTP, NAS |
|||
|
Multicast |
Stipe |
|||
|
Yntelliginsje |
Perimeter beskerming |
Tripwire, Cross Fence Detection, Ynbraak |
||
|
Gedrach Analysis |
Abandoned Object, Object Removal, Fast-Bewegen, Crowd Detection, Loitering Detection, Parking Detection |
|||
|
Eveneminten |
Bewegingsdeteksje, fideo-okklusion, sêneferoaring, audiodeteksje, netwurk loskeppele, IP-konflikt, yllegale tagong, opslachanomaly |
|||
|
Fire Detection |
Stipe |
|||
|
Ynterface |
Ethernet |
4PIN Ethernet-poarte, 10M/100M sels-oanpassing |
||
|
Alarm yn/út |
1/1 |
|||
|
Audio yn/út |
1/1 |
|||
|
Control Interface |
1x TTL 3.3V (VISCA-protokol), 1x RS485 (Pelco-protokol) (TTL 3.3V opsjoneel) |
|||
|
Video Output |
Netwurk en CVBS |
|||
|
Pseudo kleur |
White hot, black hot, fusion, izer read, ensfh 20 opsjes |
|||
|
FFC-modus |
Auto / Hânlieding |
|||
|
Image Setting |
Helderheid, Kontrast, Skerpte, en Temporele Noise Reduction |
|||
|
OSD |
Stipe |
|||
|
Flip |
Stipe |
|||
|
Mirror |
Stipe |
|||
|
Power Supply |
DC 12V, 1A |
|||
|
Stromferbrûk |
≤2.5W |
|||
|
Operating Betingsten |
-30°C~+60°C/20% oant 80%RH |
|||
|
Storage Betingsten |
-40°C~+70°C/20% oant 95%RH |
|||
|
It 1e Lensbeskermingsnivo |
IP67 |
|||
|

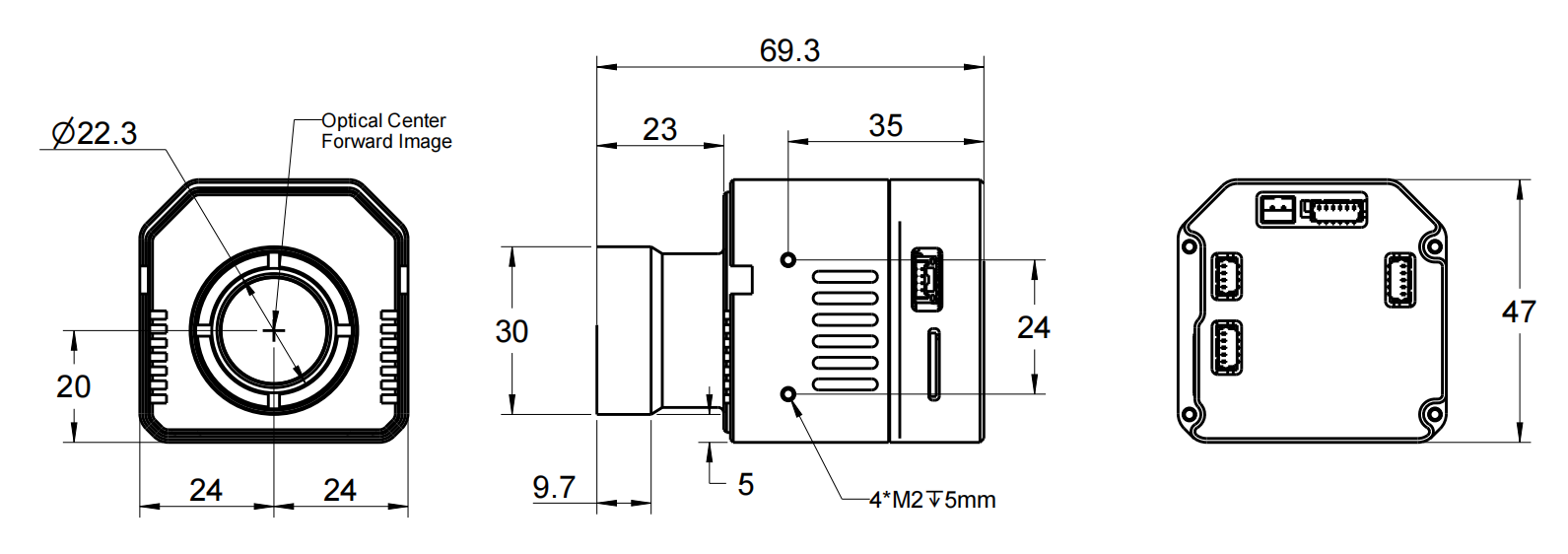

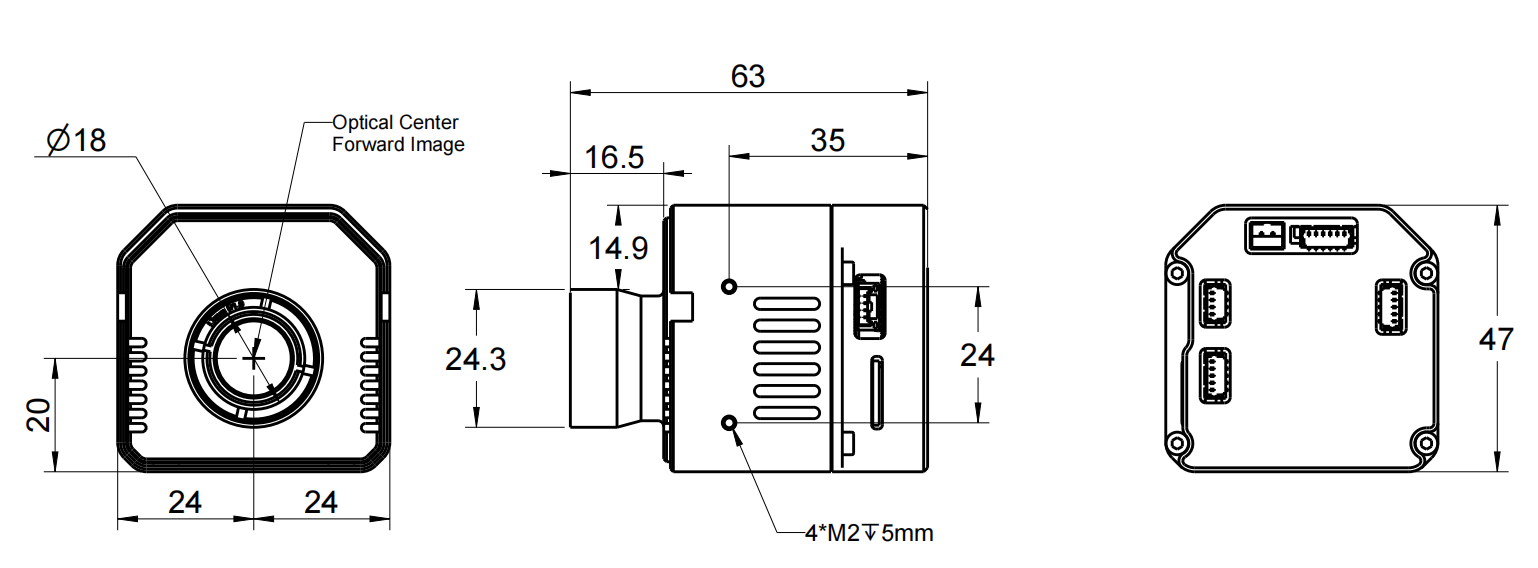

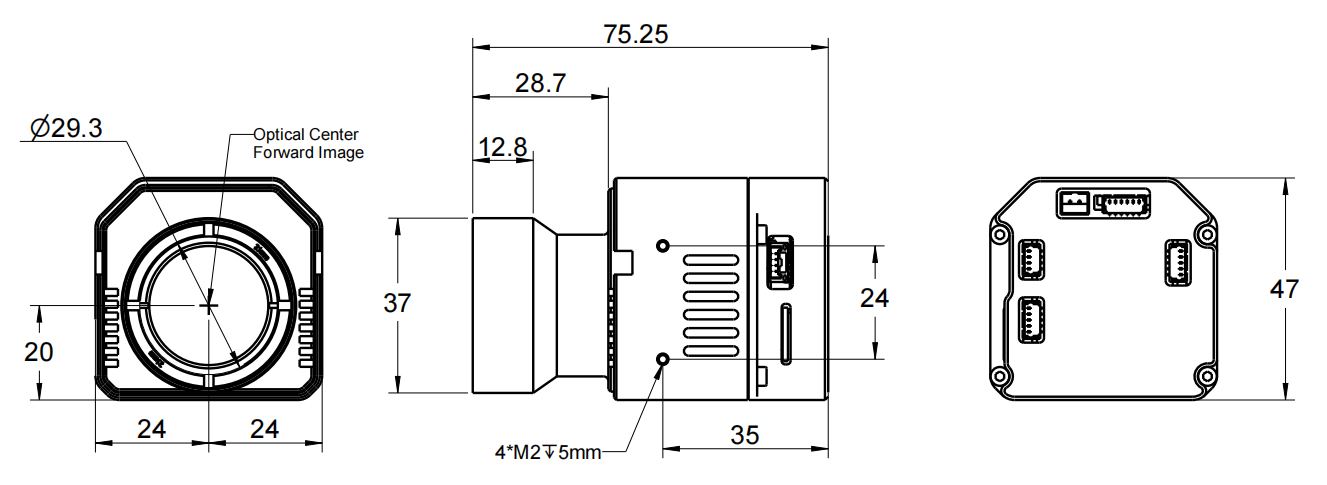

Ofmjittings (L*W*H) |
75.3*48*47mm |
69.3*48*47mm |
63*48*47mm |
|
|
Gewicht |
Ca. 200g |
Ca. 177g |
Ca. 156g |
|
DRI Ofstân
Doel: Minsklike grutte is 1.8m × 0.5m (krityske grutte is 0.75m), Vehikelgrutte is 1.4m × 4.0m (krityske grutte is 2.3m); Fjoergrutte is 0,13m × 0,13m (krityske grutte is 0,13m).
De doeldeteksje, erkenning en identifikaasjeôfstannen wurde berekkene neffens Johnson's Criteria.
De oanrikkemandearre ôfstannen fan deteksje, erkenning en identifikaasje binne as folget:
|
Lens |
Detect |
Rwerkenne | Identify | |||||||
|
Vehicle |
Minsk |
Fjoer |
Vehicle |
Minsk |
Fjoer |
Vehicle |
Minsk |
Fjoer |
||
|
13 mm |
1661m (5449 ft) |
542 m (1778 ft) |
94m (308ft) |
415 m (1362 ft) |
135 m (443 ft) |
23m (75ft) |
208m (682ft) |
68m (223ft) |
12m (39ft) |
|
|
19 mm |
2428m (7966 ft) |
792 m (2598 ft) |
137m (499 ft) |
607 m (1991 ft) |
198m (650ft) |
34m (112ft) |
303 m (994 ft) |
99 m (325 ft) |
17m (56ft) |
|
|
25 mm |
3194m (10479 ft) |
1042 m (3419 ft) |
181m (594 ft) |
799 m (2621 ft) |
260 m (853 ft) |
45m (148ft) |
399 m (1309 ft) |
130 m (427 ft) |
23m (75ft) |
|
