2MP 10x Zoom AI ISP basearre Global Shutter Network en MIPI Dual Output Camera Module

Model

SG-ZCM2010NMIL-G

Sensor

Image Sensor

1/2.6" Global Shutter CMOS

Effektive piksels

Ca. 2,3 megapixel

Lens

Focal Length

4.8mm~48mm, 10x optyske zoom

Aperture

F1.7~F3.2

Field of View

H: 61.93°~6.87°, V: 37.30°~3.87°, D: 69.09°~7.88°

Close Focus Ofstân

1m~5m (Wide~Tele)

Zoom snelheid

< 4s (Wide~Tele)

DORI Ofstân

(Minsk)

Detect

Observearje

Herkenne

Identifisearje

640m

254m

128m

64m

Video

Kompresje

H.265/H.264B/H.264H/H.264M/MJPEG

Streaming kapasiteit

3 Streams

Resolúsje

Haadstream: 50/60fps@(1920×1080, 1280×720)

Sub-Stream1: 50/60fps@(704×576, 352×288, 352×240)

Sub-Stream1: 50/60fps@(1280×720,704×576, 704×480)

Video Bit Rate

32kbps~16Mbps

MIPI fideo

50Hz: 50fps@2MP (1920×1080)

60Hz: 60fps@2MP (1920×1080)

Netwurk

Netwurkprotokol

IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTSP, RTCP, RTP, ARP, NTP, FTP, DHCP, PPPoE, DNS, DDNS, UPnP, IGMP, ICMP, SNMP, SMTP, QoS, 802.1x, Bonjour

API

ONVIF, HTTP API, SDK

Webblêder

IE, Edge, Firefox, Chrome

Meidogger

Oant 20 brûkers, nivo 2: Behearder, Brûker

Storage

Micro SD / SDHC / SDXC card (oant 1TB) edge opslach, FTP, NAS

Multicast

Stipe

Firmware Upgrade

Allinich kin opwurdearje de firmware fia Netwurk haven.

Algemiene Eveneminten

Beweging, tamper, SD-kaart, netwurk

IVS

Tripwire, Cross Fence Detection, Intrusion, Abandoned Object, Fast-Moving, Parking Detection, Crowd Gathering Estimation, Missing Object, Loitering Detection.

Doelûnderskieding

Minsk / Vehicle

S/N Ferhâlding

≥55dB

Minimum ferljochting

Kleur: 0.01Lux/F1.7; B/W: 0,001Lux/F1,7

Noise Reduksje

2D / 3D / AI Noise Reduction

Exposure Mode

Auto, Aperture Priority, Shutter Priority, Gain Priority, Manual

Exposure Compensation

Stipe

Sluitersnelheid

1/1~1/30000s

AGC

Stipe

BLC

Stipe

HLC

Stipe

WDR

Stipe

Wite Balâns

Auto, hânmjittich, binnen, bûten, ATW, natriumlamp, strjitlampe, natuerlik, ien druk

Dag/Nacht

ICR (Auto/Hânlieding)

Focus Mode

Auto, Manual, Semi Auto, Fast Auto, Fast Semi Auto, One Push AF

Elektroanyske Defog

Stipe

Heat Haze Reduksje

Stipe

Flip

Stipe

EIS

Stipe

Digitale zoom

16x

Eksterne kontrôle

TTL

Ynterface

4pin Ethernet-poarte, 6pin Power & UART-poarte, 30pin MIPI

Kommunikaasje Protokol

SONY VISCA, Pelco D/P

Operating Betingsten

-30°C~+60°C/20% oant 80%RH

Storage Betingsten

-40°C~+70°C/20% oant 95%RH

Power Supply

DC 12V

Power Consumption

TBD

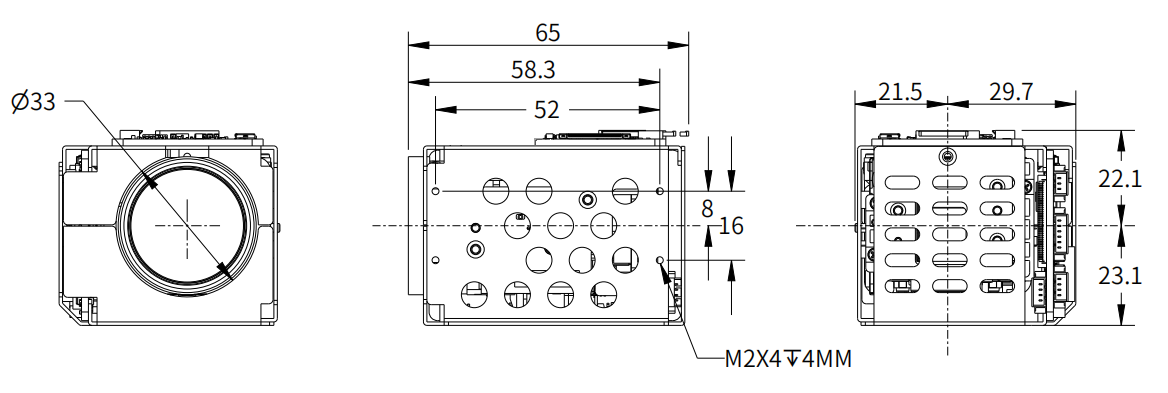

Ofmjittings (L*W*H)

65mm * 45mm * 52mm

Gewicht

152g
