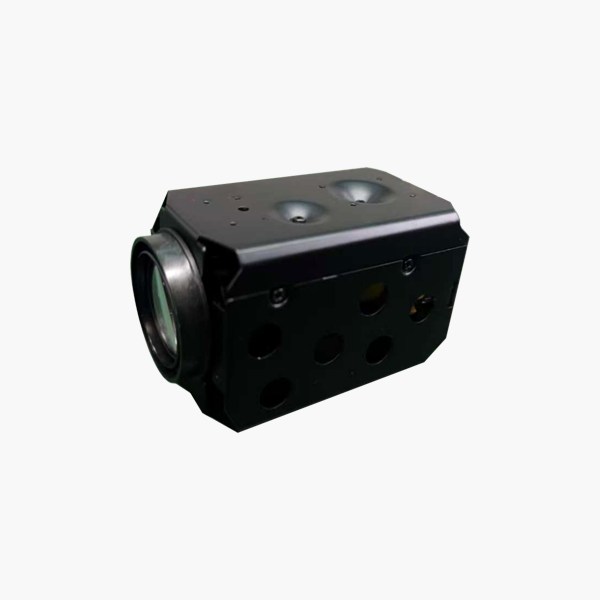

2MP 30x Zoom HDTVI, HDCVI, AHD, CVBS 4 yn 1 Output Camera Module
|
Model |
SG - ZCM2030a |
|
|
Sensor |
Image sensor |
1 / 2.8 "Sony IMX307 CMOS |
|
Effektive piksels |
Sawat 2.13 Megapixel |
|
|
Lins |
Fokale lingte |
4.7mm ~ 141mm, 30x optyske zoom |
|
Aperture |
F1.5 ~ F4.0 |
|
|
Sichtfjild |
H: 60.5 ° ~ 2.3 ° |
|
|
Slút fokusôfstân |
2m ~ 3m (Wide ~ TELE) |
|
|
Zoom snelheid |
Sawat 4S (Optical Wide ~ TELE) |
|
|
Fideo |
Formaat |
HD - Tvi, HDCVI, AHD, CVBS 4 yn 1 (OSD Menu-switch) |
|
Produksje |
Ivp - P gearstalde útfier |
|
|
Resolúsje |
TVI / CVI / AHD: 25 / 30FPS @ 2MP (1920 × 1080) Cbvs: 700tvl |
|
|
OSD Menu |
Oan / út (11 * 20 tekens) |
|
|
Minimale ferljochting |
Kleur: 0.01lux / F1.5; B / w: 0.001lux / F1.5 |
|
|
Dei / nacht |
Icr (auto, kleur, swart, ekstern) |
|
|
S / N RATIO |
≥50db |
|
|
2D-lûdferlossing |
Stypje |
|
|
3D-lûdferlossing |
Stipe (heech / midden / leech) |
|
|
Fokusmodus |
Auto, Hânlieding, Semi Auto, |
|
|
Beljochtingsmodus |
Auto, Hânlieding |
|
|
Shutter Speed |
Auto, 1/50 (1/60) ~ 1/100.000s |
|
|
Trage skutter |
X2 |
|
|
Wytbalâns |
Auto, indoor, outdoor, auto-spoar, ien druk |
|
|
Blc |
Oan / út |
|
|
Auto winst Control |
Auto, Hânlieding |
|
|
Privacy-maskering |
Oan / út, maks. 8 gebieten |
|
|
Definysje |
Ynstelber |
|
|
Kontrast |
Ynstelber |
|
|
Defog |
Stypje |
|
|
Spegel |
Oan / út, draaie, flip |
|
|
Ofbylding Freeze |
Oan / út |
|
|
Groep |
6pin, 2Pin 1.25MM Terminal Base, mei sturt board |
|
|
Kommunikaasjeprotokol |
SONY VISCA, PELCO D, UTC (9,6kbps 10bit) |
|
|
Bestjoeringsbetingsten |
- 30 ° C ~ + 60 ° C / 20% oant 80% RH |
|
|
Opslachbetingsten |
- 40 ° C ~ + 70 ° C / 20% oant 95% RH |
|
|
Streamtafier |
DC 12V / 90ma ± 6ma (DC Berik: 9 ~ 16V) |
|
|
Krêft konsumpsje |
Maks. 4w |
|
|

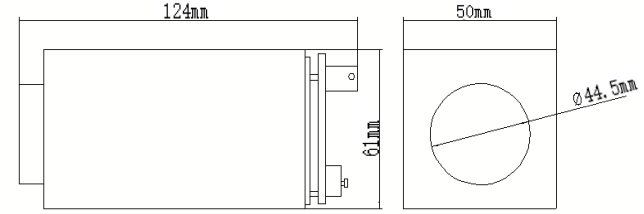

Ofmjittings (L * W * H) |
95.5mm * 50mm * 61mm (124mm * 51mm * 56mm mei sturt board) |
|
|
Gewicht |
250g (268g mei sturt board) |
|
