2MP 57x Lange berik zoom Starlight Laser Network PTZ-kamera
|
Model |
SG - Ptz2057NIO2 - L3K |
||||
|
Visible |
|||||
|
Sensor |
Image sensor |
1/50 "Sony Starvis Progressive Scan Cmos |
|||
|
Effektive piksels |
Sawat 4.17 Megapixel |
||||
|
Lins |
Fokale lingte |
15mm ~ 850mm, 57x optyske zoom |
|||
|
Aperture |
F2.8 ~ F6.5 |
||||
|
Sichtfjild |
H: 29.1 ° ~ 0,5 °, V: 16.7 ° ~ 0,2 °, D: 33.2 ° ~ 0,6 ° |
||||
|
Slút fokusôfstân |
1m ~ 10m (Wide ~ TELE) |
||||
|
Zoom snelheid |
Sawat 8S (Optical Wide ~ TELE) |
||||
|
Dori Ofstân (Minske) |
Oantoane |
Waarnimme |
Weromkenne |
Identifisearje |
|
|
11.000m |
4.365 |
2.200m |
1.100m |
||
|
Fideo |
Kompresje |
H.265 / H.264B / H.264M / H.264H / MJPEG |
|||
|
Streaming Kapasiteit |
3 Streams |
||||
|
Resolúsje |
50hz: 50fps @ 2mp (1920 × 1080), 50fps @ 1mp (1280 × 720) 60hz: 60FPS @ 2MP (1920 × 1080), 60FPS @ 1MP (1280 × 720) |
||||
|
Fideo bitrate |
32 kbps ~ 16Mbps |
||||
|
Audio |
AAC / MP2L2 |
||||
|
Netwurk |
Netwurkprotokol |
IPv4, ipv6, http, HTTPS, TCP, UDP, RTP, RTP, ARP, NTP, NTP, PPPOE, PPPOP, PPPOP, IGMM, SNMP, SMTP, QTP, Bonjour |
|||
|
API |
Onvif, HTTP API, SDK |
||||
|
Webbrowser |
Ie, râne, Firefox, Chrome |
||||
|
Brûker |
Oant 20 brûkers, 2 nivo: Behearder, brûker |
||||
|
Opslach |
Micro SD / SDHC / SDXC-kaart (oant 1tb) Edge Storage, FTP, NAS |
||||
|
Multicast |
Stypje |
||||
|
Algemiene Eveneminten |
Motion, Tamper, SD-kaart, netwurk |
||||
|
IVS |
Tripwire, krús fan 'e útdûksel, ynbraak, ferlitten objekt, rap - ferpleatse, parkeardeteksje, skattingsmerken, ûntbrekkende objekt, loiteringdeteksje. |
||||
|
Doel ûnderskie |
Minske / auto |
||||
|
S / N RATIO |
≥55dB (AGC off, gewicht op) |
||||
|
Minimale ferljochting |
Kleur: 0.005lux / F2.8; B / w: 0.0005lux / f2.8 |
||||
|
Reduksje foar lûd |
2D / 3D / Ai Noise Reduksje |
||||
|
Beljochtingsmodus |
Auto, aperture prioriteit, Shutter Priority, Krij prioriteit, Hânlieding |
||||
|
Beljochtingsferifikaasje |
Stypje |
||||
|
Shutter Speed |
1/1 ~ 1/30000s |
||||
|
Blc |
Stypje |
||||
|
HLC |
Stypje |
||||
|
WDR |
Stypje |
||||
|
Wytbalâns |
Auto, hânmjittich, indoor, outdoor, ATW, satriumlampe, strjitrampe, natuerlik, ien druk |
||||
|
Dei / nacht |
ICR (AUTO / Hânlieding) |
||||
|
Fokusmodus |
Auto, Hânlieding, Semi Auto, Fast Auto, Fast Semi Auto, One Push AF |
||||
|
Elektroanyske defog |
Stypje |
||||
|
Optysk defog |
Support, 750NM ~ 1100nm Kanaal is optysk defog |
||||
|
HEAT HAZE REDUCTION |
Stypje |
||||
|
Flip |
Stypje |
||||
|
Eis |
Stypje |
||||
|
OIS (Optyske ôfbylding stabilisaasje) |
Stipe (oan / út) |
||||
|
Digitale zoom |
16x |
||||
|
Laser Illuminator |
|||||
|
IR-ôfstân |
Oant 3000m |
||||
|
Ir op / út kontrôle |
AUTO / Hânlieding |
||||
|
Ir leds |
Laser Module |
||||
|
Pan tilt |
|||||
|
Motor |
Harmonic Motor |
||||
|
Power On / Off Sels - Kontrolearje |
Ja |
||||
|
Preset |
255 |
||||
|
Kommunikaasjemodus |
Rs485 |
||||
|
Pan / tilt berik |
Pan: 360 ° Rotearje; Tilt: - - 70 ° ~ + 20 ° |
||||
|
Pan snelheid |
Konfigurearjen, PAN: 0.01 ° ~ 40 ° / s |
||||
|
Tilt snelheid |
Konfigureare, Tilt: 0,01 ° ~ 20 ° / s |
||||
|
PRECIGE FAN PRE POSITYING |
± 0,01 ° |
||||
|
Scan |
Stypje |
||||
|
Wiper |
Stipe (foar sichtbere kamera) |
||||
|
Groep |
|||||
|
Power Interface |
Stypje |
||||
|
Ethernet |
1 × RJ45 (10Base - T / 100base - TX) |
||||
|
Audio I / O |
1/1 (allinich foar sichtbere kamera) |
||||
|
Alarm ik / o |
1/1 |
||||
|
Rs485 |
1 |
||||
|
Algemien |
|||||
|
Waterdicht |
IP66, TV's 6000V Lightning-beskerming, previnsje fan Surge |
||||
|
Krêft |
DC 48V Power Input |
||||
|
Krêft konsumpsje |
80w |
||||
|
Fochtigens |
0 ~ 90% Non - Kondensearje |
||||
|
Wurktemperatuer |
- 40 ° C ~ 70 ° C / 20% oant 90% RH |
||||
|

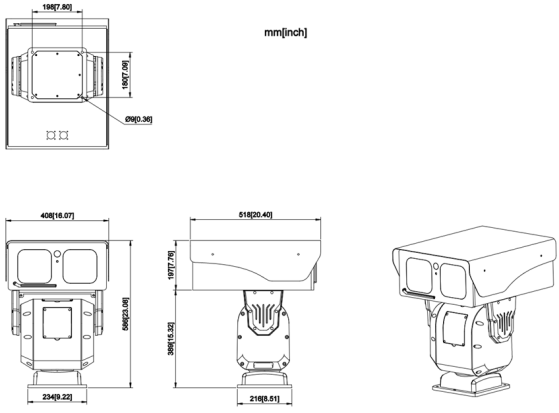

Ofmjittings (L * W * H) |
Sawat 518mm * 408mm * 586mm |
||||
|
Gewicht |
50KG |
||||
