2MP 65x AI ISP basearre Ultra Long Geach Zoom Starlight Zoom Starlight Network en MIPI Dual Dustut Camera Module
|
Model |
SG - ZCM2065nmi - o |
||||
|
Sensor |
Image sensor |
1/50 "Sony Starvis Progressive Scan Cmos |
|||
|
Effektive piksels |
Sawat 4.17 Megapixel |
||||
|
Lins |
Fokale lingte |
20mm ~ 1300mm, 65x optyske zoom |
|||
|
Aperture |
F2.92 ~ F11.4 |
||||
|
Sichtfjild |
H: 22.05 ° ~ 0,34 °, V: 12.51 ° ~ 0.19 °, D: 25.2 ° ~ 0.39 ° |
||||
|
Slút fokusôfstân |
1m ~ 50m (Wide ~ TELE) |
||||
|
Zoom snelheid |
<10s (Optical Wide ~ TELE) |
||||
|
Dori-ôfstân (Minske) |
Oantoane |
Waarnimme |
Weromkenne |
Identifisearje |
|
|
17.931m |
7,115m |
3,586m |
1,793m |
||
|
Fideo |
Kompresje |
H.265 / H.264B / H.264M / H.264.H / MJPEG |
|||
|
Streaming Kapasiteit |
3 Streams |
||||
|
Resolúsje |
Haadstream: 50 / 60FPS @ 1920 × 1080; 50 / 60FPS @ 1280 × 720 Substream1: 50 / 60FPS @ 704 × 480; 50 / 60FPS @ 640 × 480; 50 / 60FPS @ 352 × 240 Substream2: 25 / 30FPS @ 1920 × 1080; 25/0 FPS @ 1280 × 720; 25/0 FPS @ 704 × 576 |
||||
|
Audio |
AAC (8/16KHZ) / MP2L2 (16KHz) |
||||
|
Mipi Fideo |
50hz: 50fps @ 2mp (1920 × 1080) 60hz: 60FPS @ 2MP (1920 × 1080) |
||||
|
Netwurk |
Netwurkprotokol |
IPv4, ipv6, http, HTTPS, TCP, UDP, RTP, RTP, ARP, NTP, NTP, PPPOE, PPPOP, PPPOP, IGMM, SNMP, SMTP, QTP, Bonjour |
|||
|
API |
Onvif, HTTP API, SDK, GB28181 |
||||
|
Webbrowser |
Ie, râne, Firefox, Chrome |
||||
|
Brûker |
Oant 20 brûkers, 2 nivo: Behearder, brûker |
||||
|
Opslach |
Micro SD / SDHC / SDXC-kaart (oant 1tb) Edge Storage, FTP, NAS |
||||
|
Multicast |
Stypje |
||||
|
Firmware-upgrade |
Kin allinich de Firmware opwurdearje fia netwurkpoarte. |
||||
|
Algemiene Eveneminten |
Motion, Tamper, SD-kaart, netwurk |
||||
|
IVS |
Tripwire, krús fan 'e útdûksel, ynbraak, ferlitten objekt, rap - ferpleatse, parkeardeteksje, skattingsmerken, ûntbrekkende objekt, loiteringdeteksje. |
||||
|
Doel ûnderskie |
Minske / auto |
||||
|
S / N RATIO |
У55db |
||||
|
Minimale ferljochting |
Kleur: 0,05lux / F2.92; B / w: 0.005Lux / F2.92 |
||||
|
Reduksje foar lûd |
2D / 3D / Ai Noise Reduksje |
||||
|
Beljochtingsmodus |
Auto, aperture prioriteit, Shutter Priority, Krij prioriteit, Hânlieding |
||||
|
Beljochtingsferifikaasje |
Stypje |
||||
|
Shutter Speed |
1/1 ~ 1/30000s |
||||
|
Blc |
Stypje |
||||
|
HLC |
Stypje |
||||
|
WDR |
Stypje |
||||
|
Wytbalâns |
Auto, hânmjittich, indoor, outdoor, ATW, satriumlampe, strjitrampe, natuerlik, ien druk |
||||
|
Dei / nacht |
ICR (AUTO / Hânlieding) |
||||
|
Fokusmodus |
Auto, Hânlieding, Semi Auto, ien push af |
||||
|
Elektroanyske defog |
Stypje |
||||
|
Optysk defog |
Support, 750NM ~ 1100nm Kanaal is optysk defog |
||||
|
HEAT HAZE REDUCTION |
Stypje |
||||
|
Flip |
Stypje |
||||
|
Eis |
Stypje |
||||
|
Digitale zoom |
16x |
||||
|
Eksterne kontrôle |
2x TTL; Kompatibel mei Sony Visca en Pelco-protokol |
||||
|
Groep |
4Pin Ethernet Port, 6Pin Power & Uart Port, 5Pin Audio Port, 30pin mipi |
||||
|
Kommunikaasjeprotokol |
Sony Visca, Pelco D / P |
||||
|
Bestjoeringsbetingsten |
- 30 ° C ~ + 60 ° C / 20% oant 80% RH |
||||
|
Opslachbetingsten |
- 40 ° C ~ + 70 ° C / 20% oant 95% RH |
||||
|
Streamtafier |
DC 12V |
||||
|
Krêft konsumpsje |
Statyske krêft: 5w, sportkrêft: 10w |
||||
|

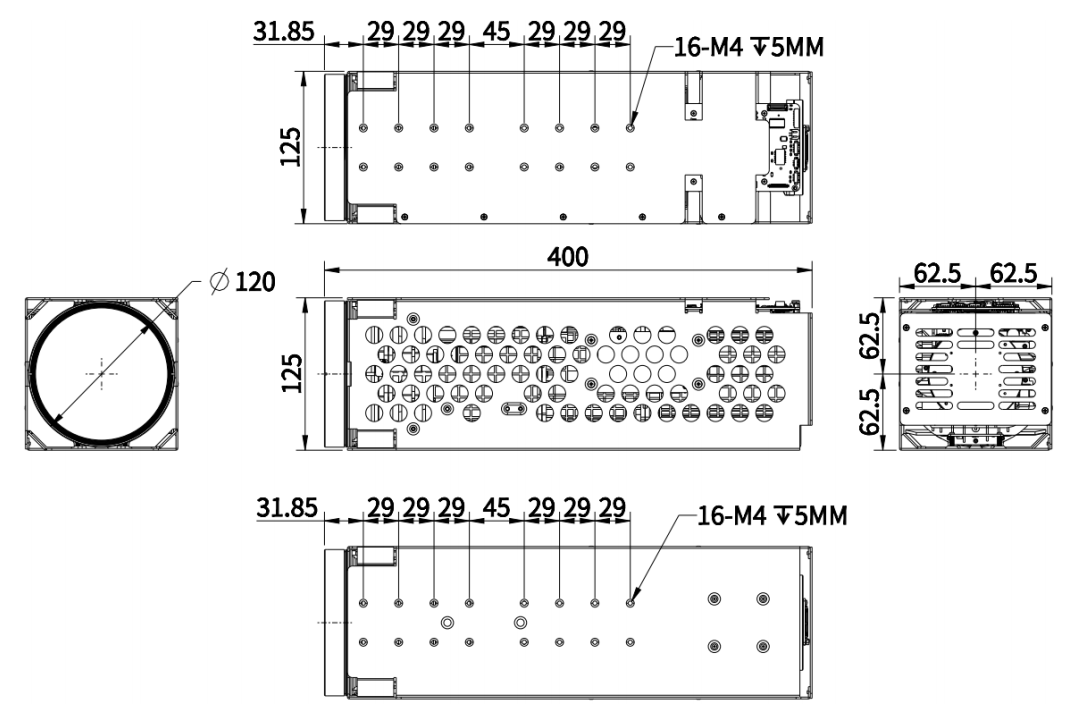

Ofmjittings (L * W * H) |
400mm * 125mm * 125mm |
||||
|
Gewicht |
Sawat 5kg |
||||
