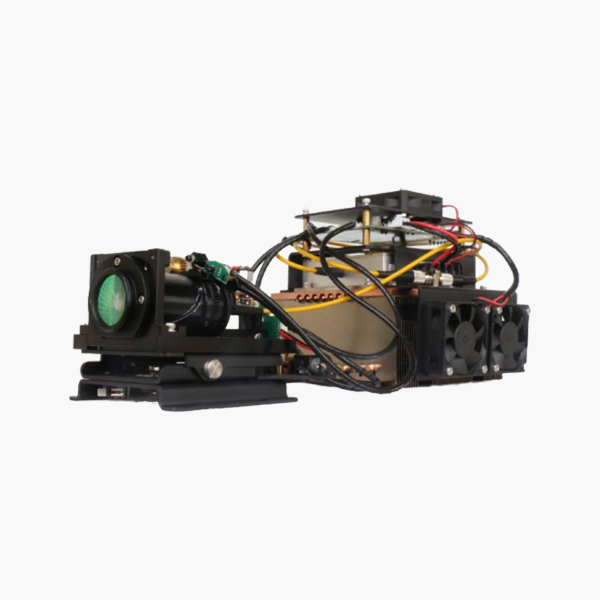

| Model | SG-IR808-5KL |
| Effektive Ofstân | ≥5000m |
| Wize | Fiber Coupling EEL (Edge Emitting Laser) |
| Golflingte | 808±5nm |
| Ynput Power | <130W |
| Output Light Power | ≥45W |
| Laser Beam Angle | Fierhoeke 0,3 °, Effektive Ofstân> 5000m, Beam Spot Diameter＜φ16m |
| Near Angle 35 °, effektive ôfstân> 10m | |
| Inisjalisaasje tiid | 10s |
| Kontrôle modus | UART_TTL, RS-485, Hânlieding |
| Kommunikaasje ynterface | RS-485, TTL232, Hânlieding |
| Kommunikaasje Protokol | Pelco-D (9600bps) |
| Wurkmodus | Gaat troch |
| Service Life | > 20000H |
| Ynput Power | DC24V±10%, 2,2A±0,3A |
| Operaasje temperatuer | -35°C~+55°C |
| Storage Temperatuer | -40°C~+85°C |
| Diminsje | 372mmx153mmx132mm |
| Gewicht | 2,5kg |
